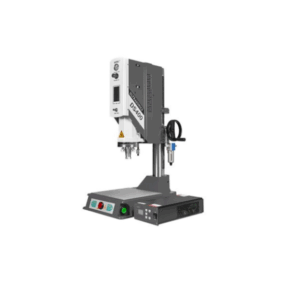

Ultrasonic Welder -PS2000
Ultrasonic Welder -PS2000 - 图片 2
Ultrasonic Welder -PS2000 - 图片 3

Ultrasonic Welder -PS2000

Series :PS-2000
Power: 2600W /3000 Frequency:20KHZ
Voltage :220±10V   Working Air Pressure:0.1~0.6MPa
Welding Accuracy：±0.05mm

Advantages：

Real-time Frequency automatic tracking
Welding Mode: Time ,Energy, Grounding
Amplitude step function
Welding amplitude 10%-100% adjustable (1% accuracy)

Application Area：

PTS2000 ultrasonic plastic welding machine is used for plastic welding, suitable for welding of household appliances, toys, Medical products, precision product welding，printing equipment and other products such as sockets and chargers.

Inquiry

The Fu-2025 ultrasonic welding machine is designed for welding and fusion forming of thermoplastics, as well as for separating textiles, fleeces, and foils. It is suitable for applications ranging from small-scale to very large-scale operations. The stable CDsonic press design can be extended with additional modules and operated in combination with a controller and a CD generator to ensure maximum process control. A variety of welding modes and trigger types enable optimal ultrasonic processing of plastic components. The welding results are monitored within quality windows and automatically evaluated both graphically and statistically.

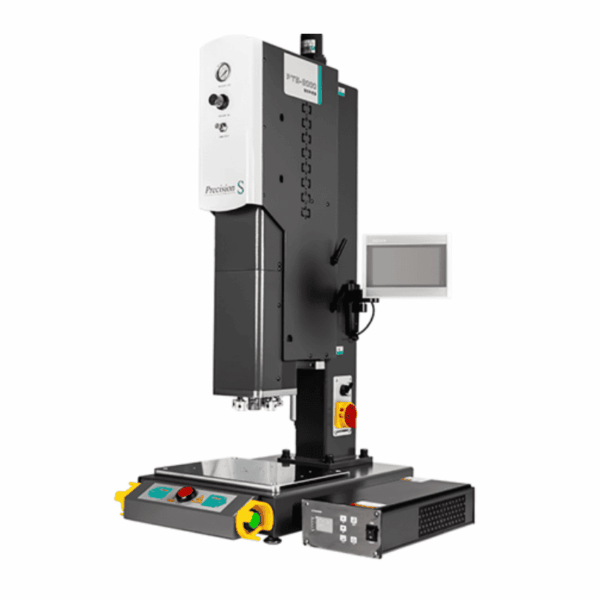

Machine Model PTS-2025 (Frequency 20KHz, Power 2500W)
Hardware 　ChuangDuan

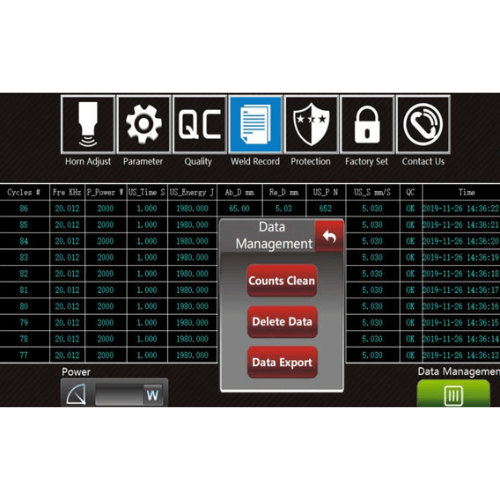

Output interface 7" color touch screen
Control Ststem iQS operating system
Motion control system Pneumatic control
Frequency(KHz) 20KHZ±300
Power(W) 2500W/3000W
Frequency adjustment IGBT Automatic frequency chasing
Z axis adjustment ±0.02mm accuracy
cylinder stroke (mm 75mm±1mm
Air pressure control proportional valve
Max. air pressure(mpa) 1mpa
Cooling system Vortex cooling
Generator Alarm Frequency Error/Over current/Power overload/Over temperature
Relative humidity 30% - 95%, condensate free
Operation temperature  +5℃ - +55℃
Air source Compressed air must be clean, dry and free of lubricant
Voltage(V) AC220V±5%  50/60Hz
Dimension(L*W*H)mm 500*750*1100mm
Weight(kg)/ 106KG
Controler 　ChuangDuan
Language(icon) 1) Chinese 2) English
Unit of force Mpa/Bar/Psi/Kpa/Kgf
Pressure unit N/Kgf/ibf
Triggering method Time/Force/Position
Welding method Time/Energy/Position
Power range(W) ≤2500Wor≤3000W
Max Welding time(S) 5S
Amplitude control Single stage amplitude/stepping amplitude
Quality control Time/Power/Energy/Pressure
Pre-press vibration  1) OFF, 2) pre-vibration time
Welding stacking function Time/Energy/Pressure
Air pressure range(mpa) 0.05mpa≤0.65mpa
Operation pressure(N) 44N≤2026N
Holding method Static pressure holding
Accessory expansion (optional)/ Sound-proof shield function/automatic film winding function/auxiliary fixture function *2/raster protection function
Transducer 　CDsonic
Warranty 1 year
Brand CDsonic
Tranduction ratio 95% < real ratio < 100%
Booster Titanium
Amplification ratio Titanium alloy 1:2.0/1:2.5
Horn Customization
Frequence precision(KHz) 19.80KHz-20.20KHz
Welding area(φmm Depends on material/shape, usually within 150mm
Product size Depends on material/shape, usually within 150mm
Data collection Yes
System data display Dynamic data section/triggering data section/welding data section

Various welding modes providing maximum flexibility

Process control and statistical evaluation

High accuracy

Ergonomic and user-friendly

Quick application changeover

Proven reliability

This ultrasonic plastic welding machine can be used for bag sealing and bottle cap welding in the food and beverage industry; welding in the ink cartridge industry; container welding in the medical industry; meter box welding in the electrical industry, toy welding, etc.
Can be used for welding ABS, PC, PPA, PET, POM, etc.

Welding Cases：Power adapter housing, power bank housing, small water tank, earphones, blood sensitive filter, etc.
